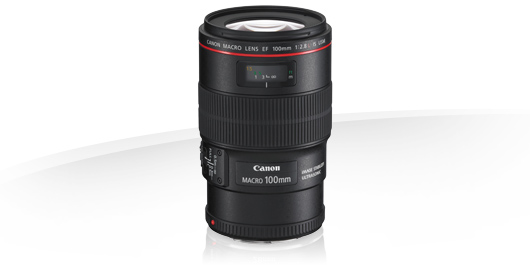

Canon EF 100mm f/2.8L Macro IS USM

Specifications

Specifications in detail

  • Angle of View (Horizontal, vertical, diagonal)

    19.8°, 13.5°, 24°

  • Lens Construction (Elements/Groups)

    15/12

  • Number of Diaphragm Blades

    9

  • Minimum Aperture

    32

  • Closest Focusing Distance (m)

    0.3

  • Maximum Magnification (x)

    1

  • Distance Information

    Provided

  • Image Stabilizer OIS1

    4-stops


    3-stops at 0.5x magnification


    2-stops at 1.0x magnification

  • AF Actuator

    Ring USM¹

  • Lens Hood

    ET-73

  • Lens Case/Pouch

    LP1219

  • Magnification with Extension Tube EF12 II

    1.17-0.12

  • Magnification with Extension Tube EF25 II

    1.37-0.27

  • Image Stabilizer

    4-stops


    3-stops at 0.5x magnification


    2-stops at 1.0x magnification

  • Image Stabilizer

    4-stops


    3-stops at 0.5x magnification


    2-stops at 1.0x magnification

  • Dust/Moisture Resistance

    Yes¹

  • Filter Diameter (mm)

    67

  • Max. Diameter x Length (mm)2

    77.7 x 123

  • Weight (g)

    625g

¹ Full time Manual focus

¹ Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount. This in no way effects either the lens or camera performance.

  1. Tested under CIPA standards. Lenses released after July 2024 tested under CIPA-2024 standard in the yaw/pitch (+ roll in case of IBIS) directions at maximum focal length, with a specific camera.
  2. Lens dimensions when in retracted state
